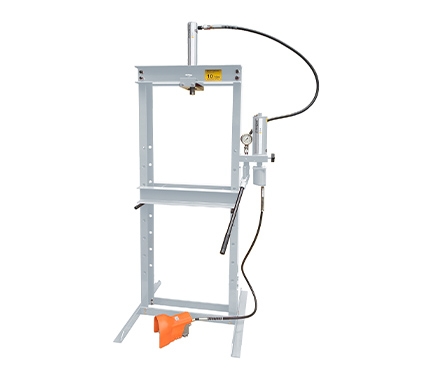

10 Ton Shop Presses
- Rugged Steel frame provides maximum firmness to prevent bending.
- Multiple working position for press bed.
- Steel cross support prevent the frame from bending while loading.
- Single-acting and spring return cylinders with 10" stroke is horizontal movement on head channel.
- Available in 10 Ton models,with optional hand pump HB700 or air-hydraulic pump PTS900A.
| Model No. | A | B | C | D | Weight (kg) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Long V-block | V base | 1/2" shank Ram pushing adaptor |
3/4" shank Ram pushing adaptor |
|||||||||
| BP102 | E0650 | E0175 | B0547 | B0548 | 9.5 | |||||||
| Model No. | Capcity (ton) | Stroke (mm) | Pump Model | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | Weight (kg) | |
| SP1301 | 10 | 254 | HB700 | 1650 | 740 | 610 | 540 | 100 | 255-1065 | 120 | 87 | |
| SP1401 | 10 | 254 | PTS900A | 1650 | 740 | 610 | 540 | 100 | 255-1065 | 120 | 90 |
|
