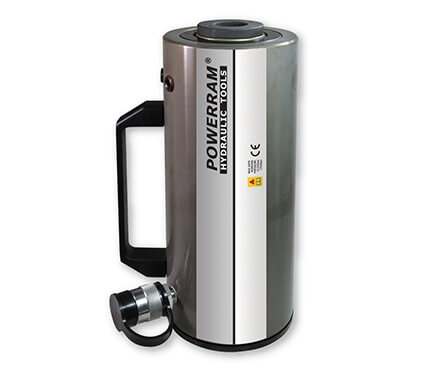

Single Acting / Hollow Type
- Half weight of steel cylinders
- Heavy duty spring for easy and full retraction
- Carry handles are standard for all models.
- Hard-Anodized housing and piston reduce wear and corosion.
- Rod wiper protects inner rod from dirt.
- Stop ring provides blow-out protection for piston.
| Model Number | Cylinder Capacity (tons) | STROKE (mm) | Cylinder Effective Area (cm2) | Oil Capacity (cm3) | Collapsed Height A (mm) | Extended Height B (mm) | Center Hole Diameter Y (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| ACHC202 | 20 | 50 | 34 | 170 | 175 | 225 | 27 | 4.3 |
| ACHC204 | 100 | 340 | 245 | 345 | 27 | 6.5 | ||
| ACHC206 | 150 | 510 | 315 | 465 | 27 | 8.0 | ||
| ACHC302 | 30 | 50 | 55 | 275 | 202 | 252 | 34 | 8.4 |
| ACHC304 | 100 | 550 | 264.5 | 364.5 | 34 | 11.8 | ||
| ACHC306 | 150 | 825 | 327 | 477 | 34 | 12.8 | ||
| ACHC602 | 60 | 50 | 89.5 | 448 | 250 | 300 | 54 | 23.0 |
| ACHC604 | 100 | 895 | 300 | 400 | 54 | 26.3 | ||
| ACHC606 | 150 | 1342 | 350 | 500 | 54 | 27.0 |
