Product Introduction
AIR HYDRAULIC FOOT PUMPS
Product Name : Air Hydraulic Foot Pumps
Product No : AP921-AP922

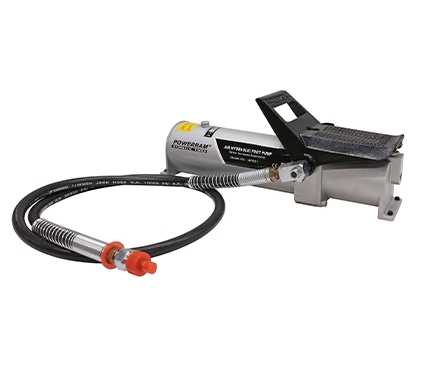

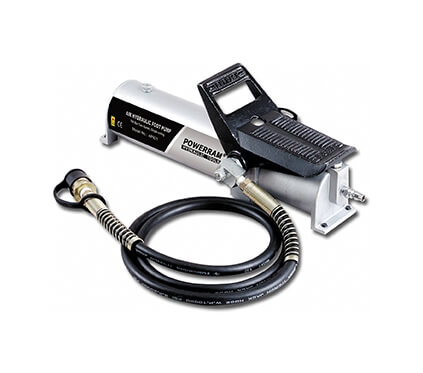

MODEL: AP921 & AP922
Single acting model
Max. working pressure: 700 bar
  • Air-power hydraulic pump is designed for using with single-acting cylinders and tools.
  • Rugged construction that most components are made of Aluminum alloy and built for long service life, easy operation and portability.
  • Automatic overload relief setting as 10, 000 psi protects components in hydraulic system and ensure work safety.
  • New inlet & outlet design features low exhausting air volume, quiet effect and can be operated in all directions.
Model No.ActingMax.Pressure
Output (psi)
Air
Pressure
(kg)
Reservori
Capacity
(c.c.)
Usable Oil
Capacity
(c.c.)
ValveWeight
(kg)
Type Function
AP921 Single 10,000 7-10 850 750 Advance 6.1
AP922 Single 10,000 7-10 850 750 Advance 6.1

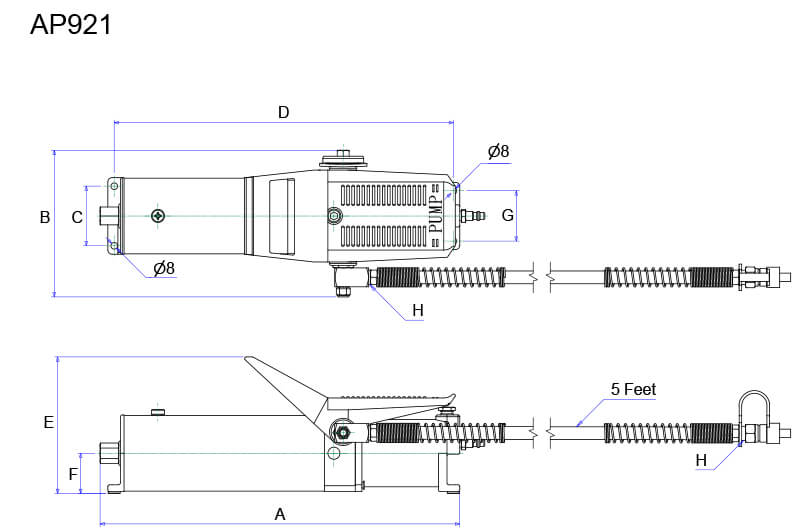

proimages/pd/Pumps/05Air Hydraulic/Drawings/AP921-catalog-drawing.jpg

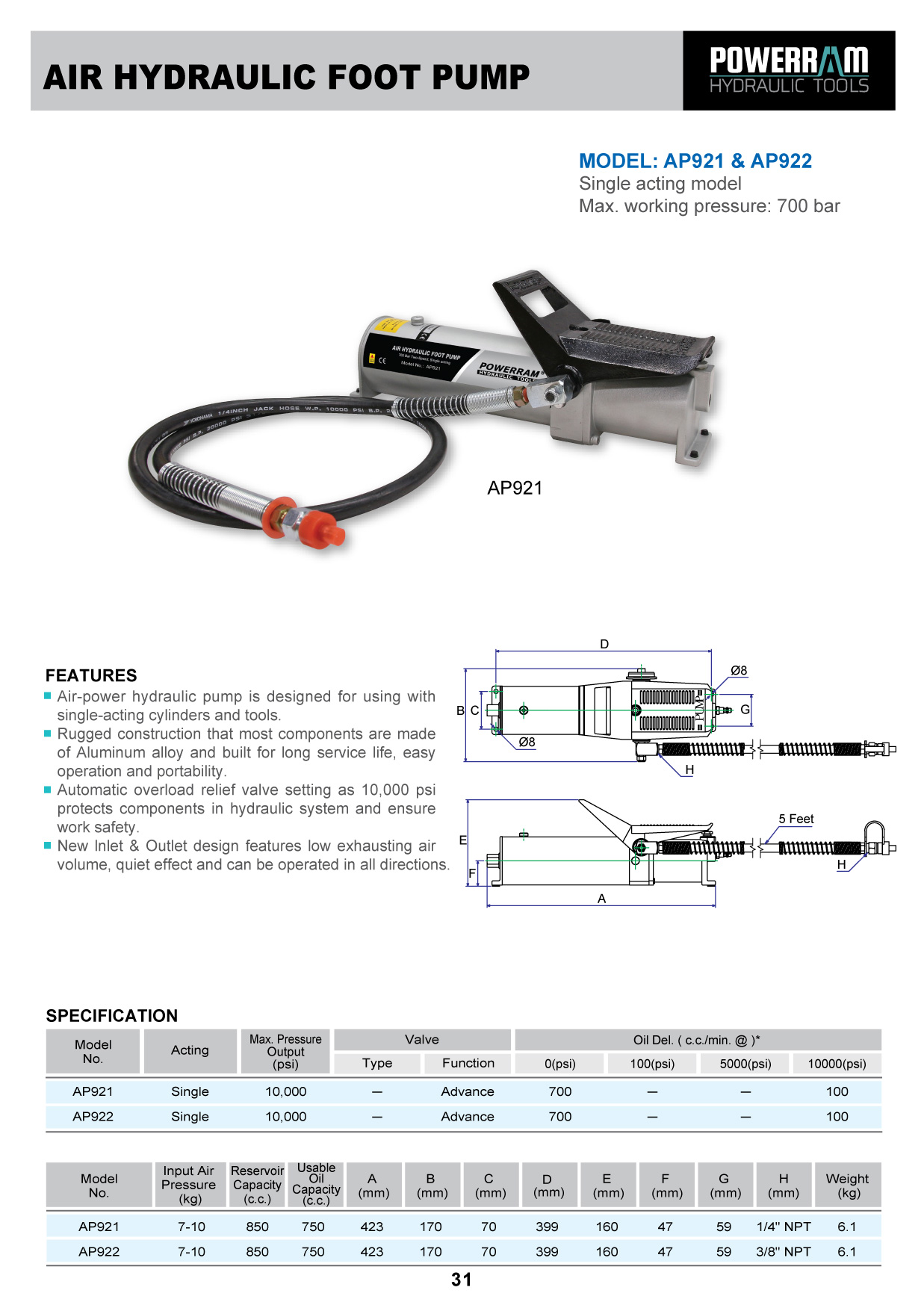

proimages/Download/20powerram-31.jpg
