Bottle Jacks & Air Hydraulic Jacks
.jpg "Bottle Jacks & Air Hydraulic Jacks")
- Low profile design for most of Industrial applications.
- Forging base as the strongest construction to catch the needs in Industry market.
- Design of housing welding onto the forged base prevent the leakage problem.
- Telescopic design of AJ120, AJ220, BJ120, BJ220, AJB1527 & AJB2035 reaches the extra height during operating to save time and labor cost.
- AJBseries are equipped with two large Dia. rubber wheels provide easy and well mobility works.
- Air/Hydraulic design make you free from pumping handle also with the most efficiency and time saving.
| Model No. | Capacity (ton) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | J (mm) | K (mm) | L (mm) | M (mm) | Handle Length (mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AJ120 | 12 | 243 | 389 | 469 | 146 | 80 | 40 | 29 | 88.5 | 43 | 180 | 160 | 105 | 109 | 290 | 10.0 |

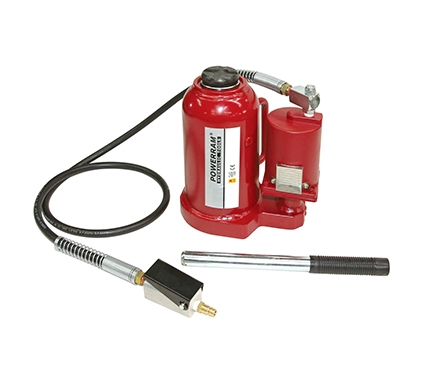

| AJ220 | 22 | 240 | 369 | 449 | 129 | 80 | 56 | 38 | 114 | 54 | 207 | ─ | 130 | ─ | 290 | 15.1 |

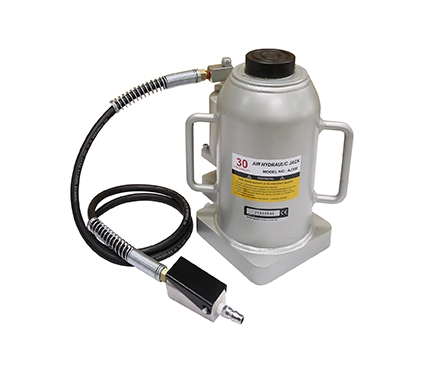

| AJ300 | 30 | 279 | 423 | ─ | 144 | ─ | 65 | ─ | 140 | ─ | 235 | ─ | 150 | 154 | 290 | 26.0 |
| AJ500 | 50 | 304 | 452 | ─ | 148 | ─ | 75 | ─ | 165.5 | ─ | 260 | ─ | 180 | ─ | 290 | 39.4 |
| Model No. | Capacity (ton) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | J (mm) | K (mm) | L (mm) | Handle Length | Weight | |
| BJ120 | 12 | 243 | 389 | 469 | 146 | 80 | 40 | 29 | 88.5 | 43 | 507 | 160 | 105 | 500 | 8.8 | |
| BJ220 | 22 | 240 | 369 | 449 | 129 | 80 | 56 | 38 | 114 | 54 | 507 | 190 | 130 | 500 | 14.0 | |
| BJ300 | 30 | 279 | 423 | ─ | 144 | ─ | 65 | ─ | 140 | ─ | 507 | 235 | 150 | 500 | 27.0 | |

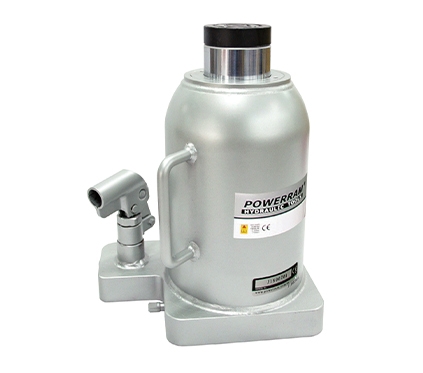

| BJ500 | 50 | 304 | 452 | ─ | 148 | ─ | 75 | ─ | 165.5 | ─ | 507 | 260 | 180 | 500 | 36.8 | |
| Model No. | Capacity (ton) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | Weight | ||||||
| AJB1527 | 15/27 | 200 | 287 | 374 | 87 | 87 | 490 | 274 | 1155 | 38.5 | ||||||
| AJB2035 | 20/35 | 200 | 287 | 374 | 87 | 87 | 490 | 274 | 1155 | 45.0 | ||||||

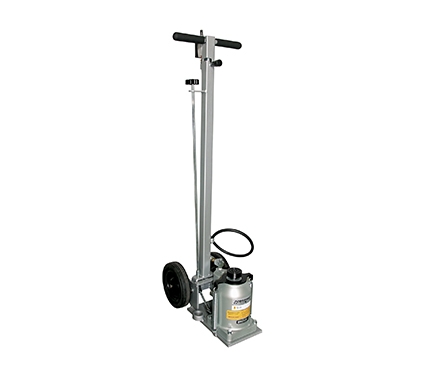

| AJB300 | 30 | 247 | 345 | ─ | 98 | ─ | 460 | 274 | 1155 | 43.0 | ||||||
| AJB500 | 50 | 266 | 367 | ─ | 101 | ─ | 490 | 274 | 1155 | 53.5 | ||||||
