Product Introduction
HEAVY DUTY HAND PUMPS 7 Ltr
Product Name : Heavy Duty Hand Pumps 7.0 Ltr
Product No : HP80

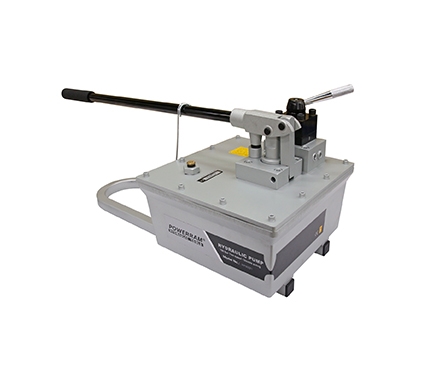

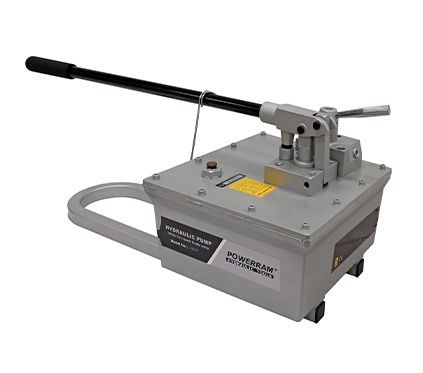

MODEL: HP80 & HP80D
Dual-speed models
Large 3/8" NPT pressure port for max. flow
Heavy-Duty, Large reservoir
Max. working pressure: 700 bar
Inquiry
  • Casting tank made of steel.
  • Internal overload relief valve prevents pump from being used beyond its rated capacity.
  • HP80D is ideal for double-acting cylinders without the need for additional control valve.
Model No.Pressure Rating (bar)Usable Oil Capacity (c.c.)Oil Volume per Stroke (c.c.)Weight (kgs)
1st Stage 2nd stage 1st Stage 2nd stage
HP80 27.5 700 8000 113 4 24.7
HP80D 27.5 700 8000 113 4 27.5

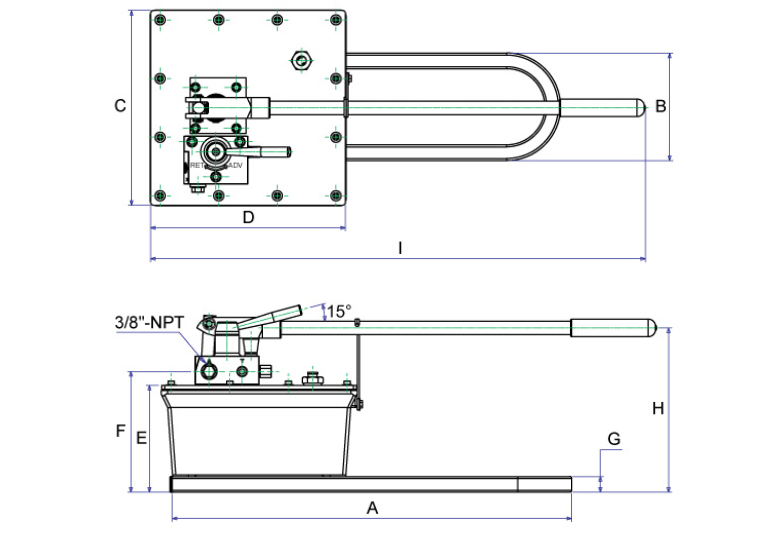

proimages/0530/Drawaing/HP80-DW.jpg

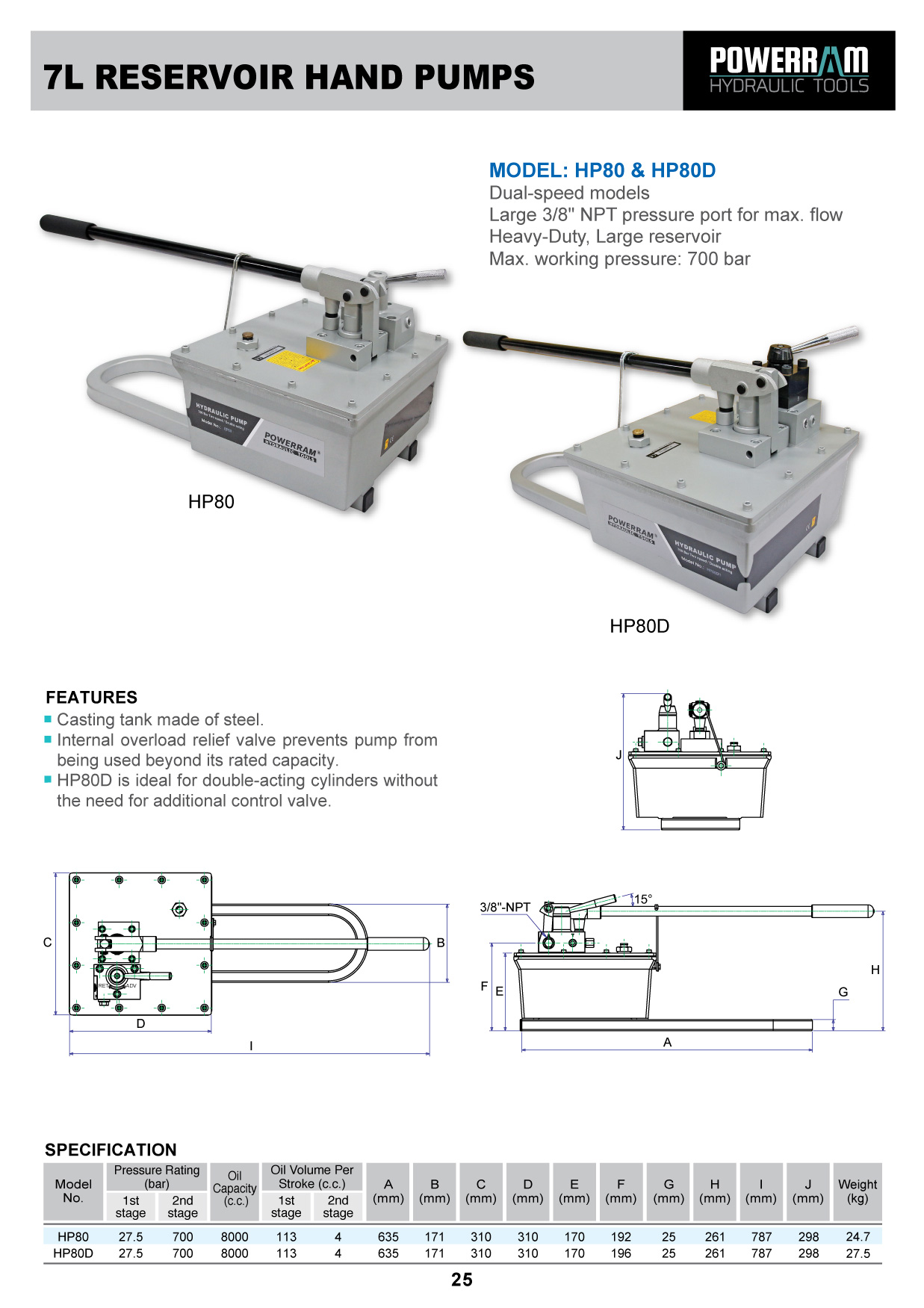

proimages/Download/20powerram-25.jpg
