Three-In-One Push Pullers
USER-FRIENDLY
- Unique & Patented double action pump body to provide the pushing and pulling force.
- Unique jaw design for installing and outer pulling without removing and changing.
- Three jaw structure provides the even and constant force whenever for installing, outer pulling and inner pulling.
- The extension bars can be used where necessary for reach.
- Self-centering design on inner puller provides the even force and prevents the jaws from sliding off during operating.
SAFE
- The built-in safety valve prevents the user being harmed and work object being damaged by rated pressure which can not be reset or adjusted.
- Most parts are forged SCM440 alloy steel, creating a durable and safe product.
COST SAVING
- The Three-in-One design reduces tool-reset time and duration of operation.
- This push puller is ideal for installing and dismantling a wide variety of press-fit parts, including bushings, wheels, bearings, gears and pulleys.
| Push Puller / Three-In-One | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model No. | Operation | Output | A | B | C | D | E | F | Weight |
| (Tons) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | ||

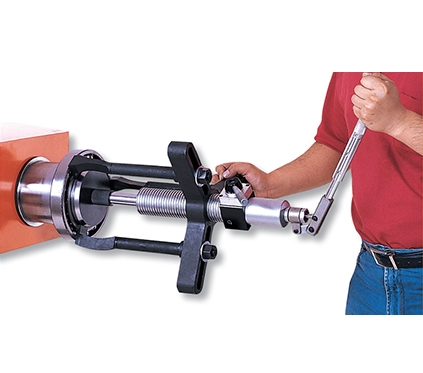

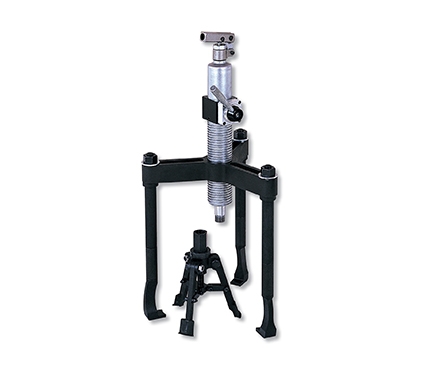

| PD12080 | Installing | 8 | 44 - 280 | 270 | 135 | 28 | M12-P1.75 | 34 | 36.0 |

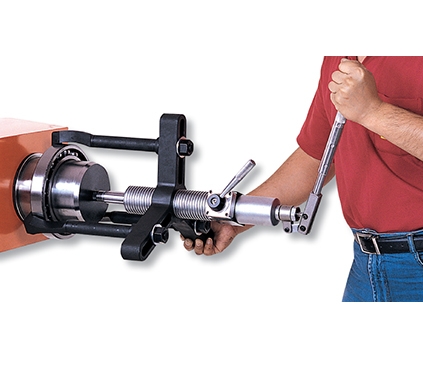

| Outer Pulling | 12 | 85 - 300 | 260 | 135 | 28 | --- | --- | --- | |

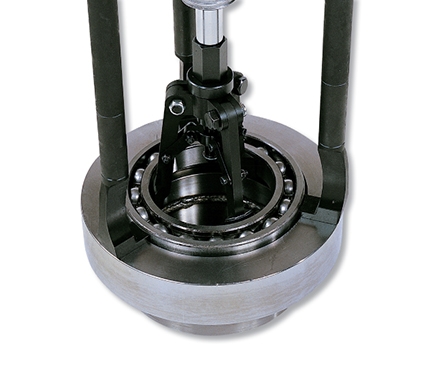

| Inner Pulling | 8 | 90 - 245 | 130 - 150 | --- | --- | 1"-12UNF | --- | --- | |

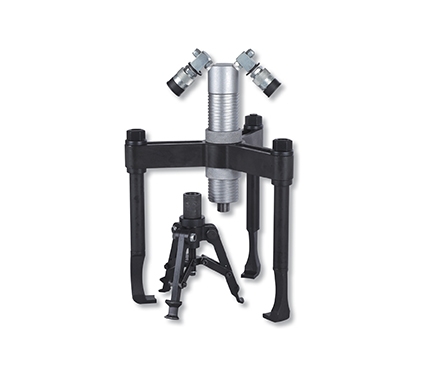

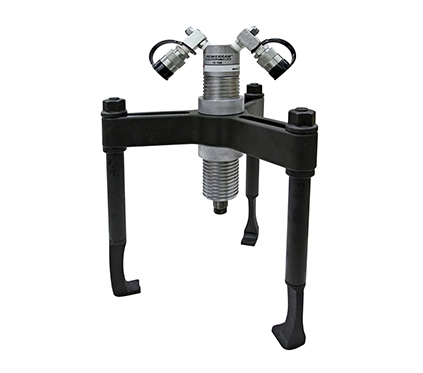

| PDR12080 | Installing | 8 | 44 - 280 | 270 | 135 | 28 | M12-P1.75 | 34 | 34.0 |
| Outer Pulling | 12 | 85 - 300 | 260 | 135 | 28 | --- | --- | --- | |
| Inner Pulling | 8 | 90 - 245 | 130 - 150 | --- | --- | 1"-12UNF | --- | --- | |

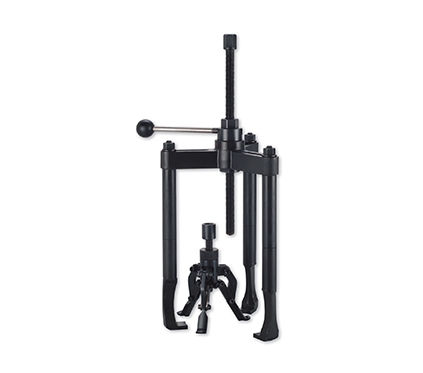

| MD6203 | Installing | 8 | 70 - 206 | 240 | 720 | 3/4"10UNC | M12-P1.75 | 34 | 12.0 |
| Outer Pulling | 8 | 29 - 186 | 230 | 720 | 3/4"10UNC | --- | --- | --- | |
| Inner Pulling | 8 | 52 - 150 | 130 - 150 | 34 | 5/8"-11UNC | 3/4"-10UNC | --- | --- | |
| *Hand Pumps suggested for PDR12080: ADHP703D & P550D. | |||||||||
