Product Introduction

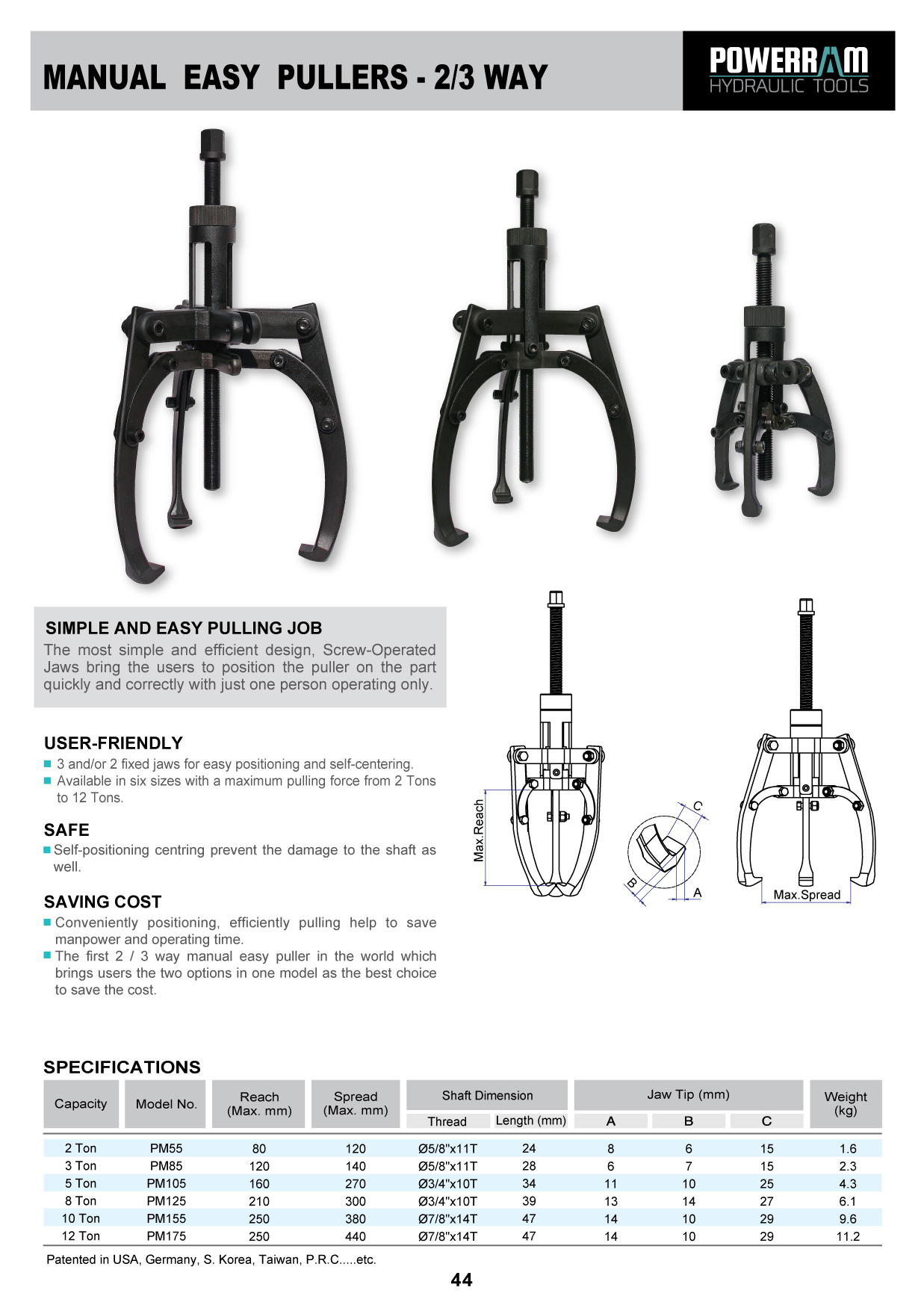

MECHANICAL EASY PULLERS (2/3 WAY)
Product Name : Mechanical Easy Pullers (2/3 Way)
Product No : PM55-PM175
Capacity: 2 - 12 Ton
Spread: 120 ~ 440mm

SIMPLE AND EASY PULLING JOB
The most simple and efficient design, the screw-Operated jaws bring the users to position the puller on the part quickly and precisely with one person operating only.
Inquiry
USER-FRIENDLY
  • 3 and/or 2 fixed jaws for easy positioning and self-centering.
  • Available in six sizes with a maximum pulling force from 2 Ton to 12 Ton.
SAFE
  • Self-centering function prevents the damage to the shaft and work piece being pulled.
SAVING COST
  • Easy operating by one person which save time and work efficiently
  • The first 2 or 3 way mechanical puller in the world, also a good choice to save cost by one price for two pullers.
Mechanical Easy Pullers (2/3 Way)
CapacityModel No.Reach (Max. mm)Spread (Max. mm)Shaft Dim.Length(mm)Jaw Tip (mm)Weight (kg)
A B C
2 Ton PM55 80 120 Φ5/8"x11T 24 8 6 15 1.6
3 Ton PM85 120 140 Φ5/8"x11T 28 6 7 15 2.3
5 Ton  PM105 160 270 Φ3/4"x10T 34 11 10 25 4.3
8 Ton  PM125 210 300 Φ3/4"x10T 39 13 14 27 6.1
10 Ton  PM155 250 380 Φ7/8"x14T 47 14 10 29 9.6
12 Ton  PM175 250 440 Φ7/8"x14T 47 14 10 29 11.2
