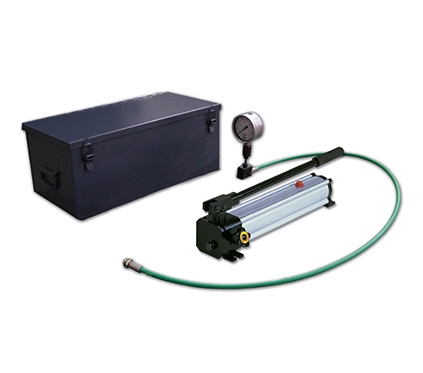

Hand Pump Packages

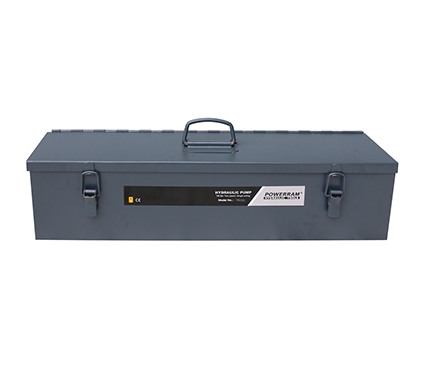

- Packed with steel case for easy storage and portable works.

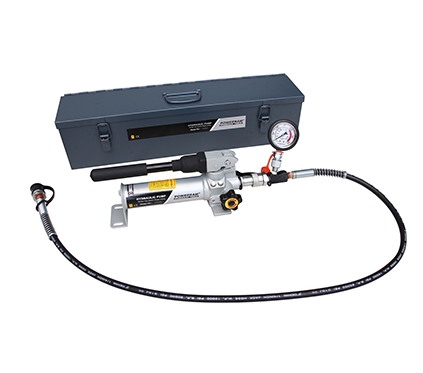

- 700 bar pump sets are including gauge adaptor, pressure gauge and 1.5mtrs hose.
- 1000 - 2800 bar pump sets are including ultra high pressure gauge and hose for special applications.
| Model No. | Pressure Rating (bar) | Oil Capacity (c.c.) | Oil Volume per Stroke (c.c.) | Pressure Gauge | Hydraulic Hose | Weight (kgs) | ||
|---|---|---|---|---|---|---|---|---|
| 1st Stage | 2nd stage | 1st Stage | 2nd stage | |||||
| PB350BG | 13.8 | 200 | 350 | 13.0 | 2.8 | 1000 bar 2-1/2" Dial | 3/8 NPT 5 feet long | 12.4 |
| PB600BG | 13.8 | 700 | 600 | 13.0 | 2.8 | 13.8 | ||
| PB700BG | 13.8 | 700 | 700 | 13.0 | 2.8 | 14.0 | ||
| HC1500BG | 13.8 | 700 | 1500 | 13.0 | 2.8 | 22.6 | ||
| HC2000BG | 13.8 | 700 | 2000 | 13.0 | 2.8 | 24.8 | ||
| AHP701BG | 20 | 700 | 500 | 12.9 | 1.65 | 10.4 | ||
| AHP702BG | 20 | 700 | 1000 | 12.9 | 1.65 | 11.1 | ||
| AHP703BG | 20 | 700 | 2000 | 12.9 | 2.30 | 18.1 | ||
| AHP703DBG | 20 | 700 | 2000 | 12.9 | 2.30 | 21.0 | ||
| P901BG | 20 | 700 | 450 | 19.4 | 1.2 | 14.6 | ||
| P902BG | 20 | 700 | 850 | 19.4 | 2.8 | 15.4 | ||
| P903BG | 20 | 700 | 1600 | 19.4 | 2.8 | 22.1 | ||
| P904BG | 27.5 | 700 | 2500 | 39.5 | 2.8 | 34.5 | ||
| P904DBG | 27.5 | 700 | 2500 | 35.6 | 2.8 | 37.0 | ||
| P905BG | 20 | 1000 | 850 | 19.4 | 1.2 | 1600 bar / 4" Dial | G1/4 / 6 feet long | 30.5 |
| AHP704BG | 20 | 1000 | 1000 | 12.9 | 1.65 | 1600 bar / 4" Dial | G1/4 / 6 feet long | 24.5 |
| AHP705BG | 20 | 1500 | 2000 | 12.9 | 1.00 | 2500 bar / 4" Dial | G1/4 / 6 feet long | 27.0 |
| UHP2800BG | 20 | 2800 | 1000 | 12.9 | 0.65 | 4000 bar / 4" Dial | G1/4 / 6 feet long | 28.0 |
