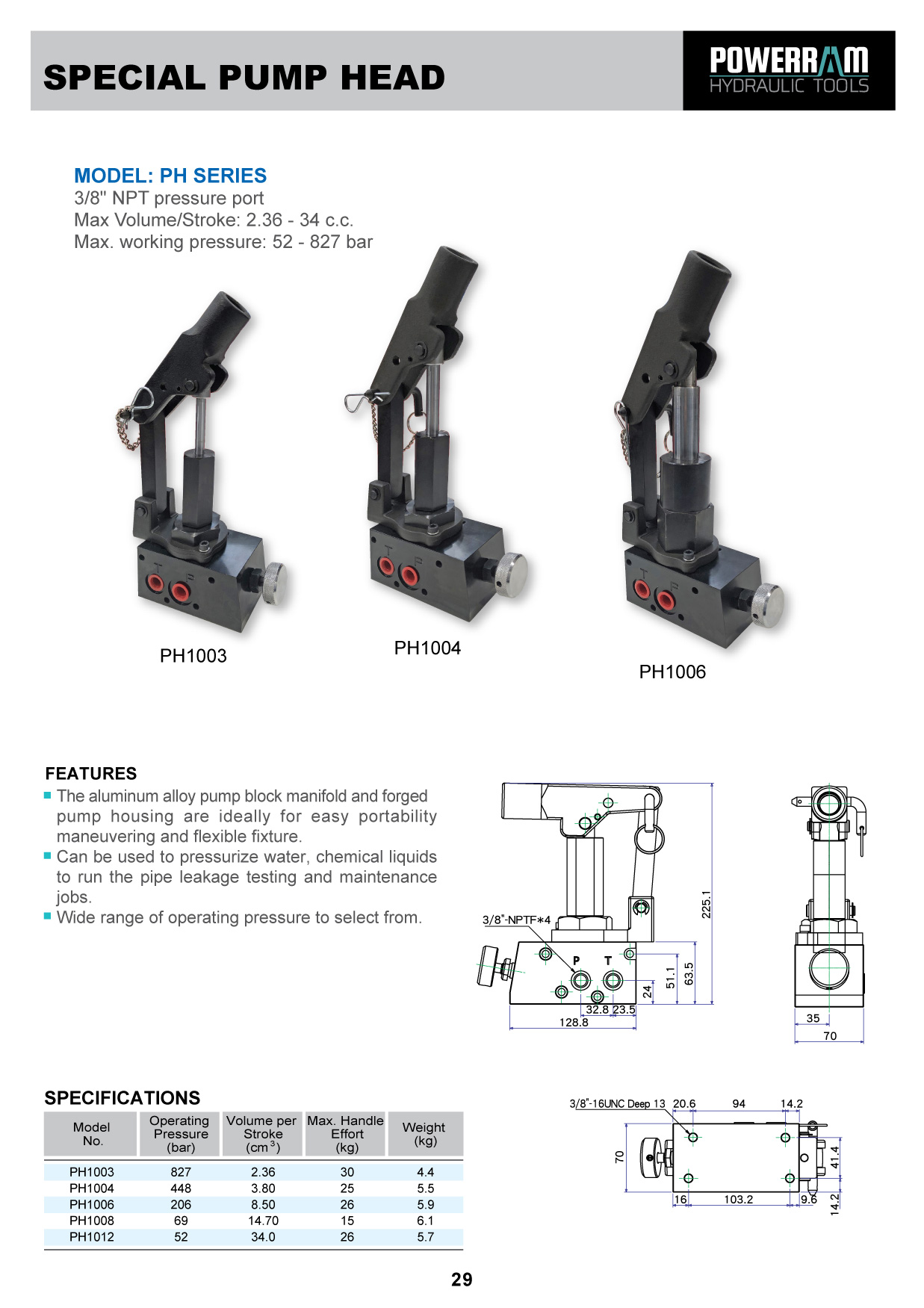

Special Pump Heads
- The aluminum alloy pump block manifold and forged pump housing are ideally for easy portability maneuvering and flexible fixture.
- Can be used to pressurize water, chemical liquids to run the pipe leakage testing and maintenance jobs.
- Wide range of operating pressure to select from.
| Model No. | Operating Pressure (bar) | Volume per Stroke (cm3) | Maximum Handle Effort (kg) | Weight (kg) |
|---|---|---|---|---|

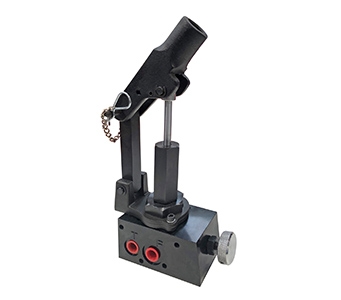

| PH1003 | 827 | 2.36 | 30 | 4.4 |

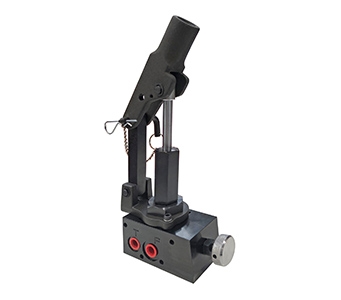

| PH1004 | 448 | 3.8 | 25 | 5.5 |
| PH1006 | 206 | 8.5 | 26 | 5.9 |
| PH1008 | 69 | 14.7 | 15 | 6.1 |
| PH1012 | 52 | 34 | 26 | 5.7 |
