Single Acting / Standard
- Half weight of steel cylinders
- Heavy duty spring for easy and full retraction
- Carry handles are standard for all models.
- Hard-Anodized housing and piston reduce wear and corosion.
- Rod wiper protects inner rod from dirt.
- Stop ring provides blow-out protection for piston.
| Model Number | Cylinder Capacity (ton) | STROKE (mm) | Oil Capacity (cm3) | Collapsed Height A (mm) | Extended Height B (mm) | Weight (kg) (mm) |
|---|---|---|---|---|---|---|
| SSA202 | 20 | 50 | 166 | 168 | 218 | 4.3 |
| SSA204 | 100 | 332 | 218 | 318 | 5.0 | |
| SSA206 | 150 | 498 | 268 | 418 | 5.7 | |
| SSA208 | 200 | 664 | 318 | 518 | 6.5 | |
| SSA302 | 30 | 50 | 221 | 175 | 225 | 6.0 |
| SSA304 | 100 | 442 | 225 | 325 | 6.9 | |
| SSA306 | 150 | 663 | 275 | 425 | 7.9 | |
| SSA308 | 200 | 884 | 325 | 525 | 8.8 | |
| SSA502 | 50 | 50 | 354.5 | 171 | 221 | 7.7 |
| SSA504 | 100 | 709 | 221 | 321 | 9.1 | |

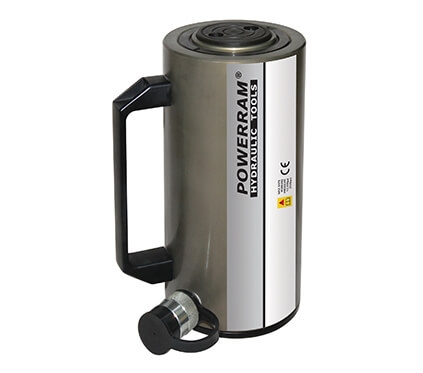

| SSA506 | 150 | 1063.5 | 271 | 421 | 11.7 | |
| SSA508 | 200 | 1418 | 321 | 521 | 13.5 | |
| SSA5010 | 250 | 1772.5 | 371 | 621 | 16.4 | |

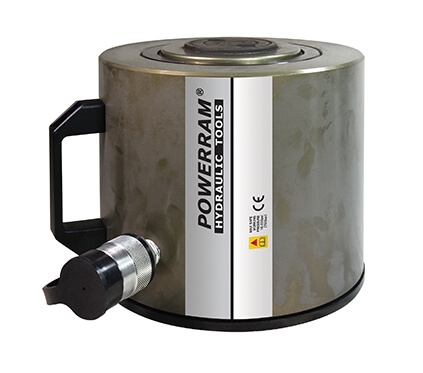

| SSA1002 | 100 | 50 | 715 | 185 | 235 | 17.2 |
| SSA1004 | 100 | 1430 | 235 | 335 | 21.0 | |
| SSA1006 | 150 | 2145 | 285 | 435 | 25.1 | |
| SSA1008 | 200 | 2860 | 335 | 535 | 28.5 | |
| SSA10010 | 250 | 3575 | 385 | 635 | 30.7 |
