油管
油管
- 最大工作壓力 - 700 bar，符合 IJ-100的安全標準規範。
- 兩層高級人工橡膠，內含交織型鋼絲以強化油管強度。
- 高彈性，同時兩端設有彈簧圈保護。
| 品名 | 型號 | 端一 | 端二 | 長度 | 内徑 | ||
|---|---|---|---|---|---|---|---|
| (英尺) | (公尺) | (英吋) | (公釐) | ||||

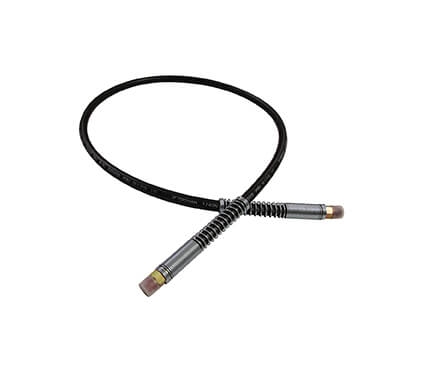

| 橡膠油管 | HS225 | 1/4" NPT | 1/4" NPT | 5 | 1.5 | 1/4 | 6.4 |
| HS235 | 1/4" NPT | 3/8" NPT | 5 | 1.5 | 1/4 | 6.4 | |
| HS226 | 1/4" NPT | 1/4" NPT | 6 | 1.8 | 1/4 | 6.4 | |
| HS236 | 1/4" NPT | 3/8" NPT | 6 | 1.8 | 1/4 | 6.4 | |
| HS332 | 3/8" NPT | 3/8" NPT | 2 | 0.6 | 1/4 | 6.4 | |
| HS333 | 3/8" NPT | 3/8" NPT | 3 | 0.9 | 1/4 | 6.4 | |
| HS335 | 3/8" NPT | 3/8" NPT | 5 | 1.5 | 1/4 | 6.4 | |
| HS336 | 3/8" NPT | 3/8" NPT | 6 | 1.8 | 1/4 | 6.4 | |
| HS337 | 3/8" NPT | 3/8" NPT | 7 | 2.1 | 1/4 | 6.4 | |
| HS338 | 3/8" NPT | 3/8" NPT | 8 | 2.4 | 1/4 | 6.4 | |
| HS3310 | 3/8" NPT | 3/8" NPT | 10 | 3.0 | 1/4 | 6.4 | |
| HS3312 | 3/8" NPT | 3/8" NPT | 12 | 3.6 | 1/4 | 6.4 | |
| HS3315 | 3/8" NPT | 3/8" NPT | 15 | 4.5 | 1/4 | 6.4 | |
| HS3320 | 3/8" NPT | 3/8" NPT | 20 | 6.0 | 1/4 | 6.4 | |

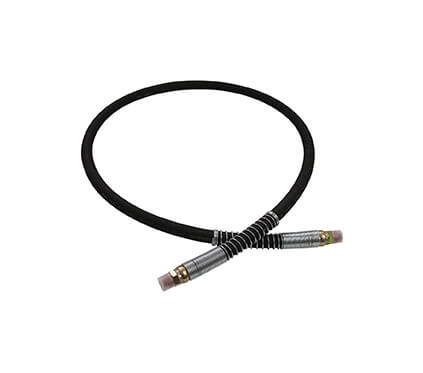

| 橡膠油管 (高流量) | HFHS332 | 3/8" NPT | 3/8" NPT | 2 | 0.6 | 3/8 | 9.4 |
| HFHS333 | 3/8" NPT | 3/8" NPT | 3 | 0.9 | 3/8 | 9.4 | |
| HFHS335 | 3/8" NPT | 3/8" NPT | 5 | 1.5 | 3/8 | 9.4 | |
| HFHS336 | 3/8" NPT | 3/8" NPT | 6 | 1.8 | 3/8 | 9.4 | |
| HFHS338 | 3/8" NPT | 3/8" NPT | 8 | 2.4 | 3/8 | 9.4 | |
| HFHS3310 | 3/8" NPT | 3/8" NPT | 10 | 3.0 | 3/8 | 9.4 | |

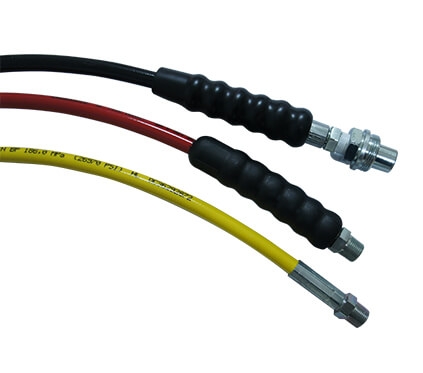

| PU油管 | PHS332 | 3/8" NPT | 3/8" NPT | 2 | 0.6 | 1/4 | 6.3 |
| PHS333 | 3/8" NPT | 3/8" NPT | 3 | 1.0 | 1/4 | 6.3 | |
| PHS335 | 3/8" NPT | 3/8" NPT | 5 | 1.5 | 1/4 | 6.3 | |
| PHS336 | 3/8" NPT | 3/8" NPT | 6 | 1.8 | 1/4 | 6.3 | |
| PHS337B | 3/8" NPT | 3/8" NPT | 7 | 2.1 | 1/4 | 6.3 | |
| PHS338 | 3/8" NPT | 3/8" NPT | 8 | 2.4 | 1/4 | 6.3 | |
| PHS3310 | 3/8" NPT | 3/8" NPT | 10 | 3.0 | 1/4 | 6.3 | |
| PHS3312 | 3/8" NPT | 3/8" NPT | 12 | 3.6 | 1/4 | 6.3 | |
| PHS3315 | 3/8" NPT | 3/8" NPT | 15 | 4.5 | 1/4 | 6.3 | |
| PHS3320 | 3/8" NPT | 3/8" NPT | 20 | 6.0 | 1/4 | 6.3 | |
| PHS3330 | 3/8" NPT | 3/8" NPT | 30 | 9.0 | 1/4 | 6.3 | |

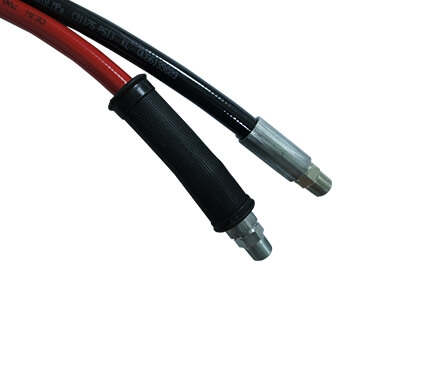

| PU油管 (高流量) | HPHS332 | 3/8" NPT | 3/8" NPT | 2 | 0.6 | 3/8 | 9.7 |
| HPHS333 | 3/8" NPT | 3/8" NPT | 3 | 1.0 | 3/8 | 9.7 | |
| HPHS335 | 3/8" NPT | 3/8" NPT | 5 | 1.5 | 3/8 | 9.7 | |
| HPHS336 | 3/8" NPT | 3/8" NPT | 6 | 1.8 | 3/8 | 9.7 | |
| HPHS338 | 3/8" NPT | 3/8" NPT | 8 | 2.4 | 3/8 | 9.7 | |
| HPHS3310 | 3/8" NPT | 3/8" NPT | 10 | 3.0 | 3/8 | 9.7 | |
| HPHS3312 | 3/8" NPT | 3/8" NPT | 12 | 3.6 | 3/8 | 9.7 | |
| HPHS3315 | 3/8" NPT | 3/8" NPT | 15 | 4.5 | 3/8 | 9.7 | |
| HPHS3320 | 3/8" NPT | 3/8" NPT | 20 | 6.0 | 3/8 | 9.7 | |
| HPHS3330 | 3/8" NPT | 3/8" NPT | 30 | 9.0 | 3/8 | 9.7 | |
| 壓力計 | |||||||
| 型號 | 規格 | ||||||

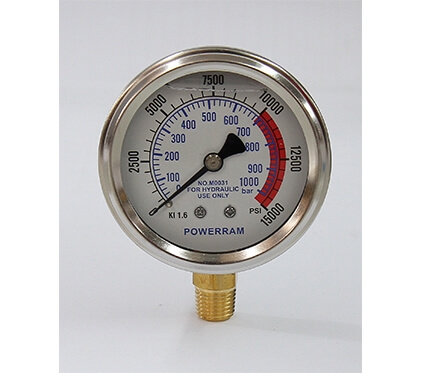

| M0039 | 含油設計保護指針振動 | ||||||
| 量測範圍: 700 bar / 10,000 psi | |||||||
| 錶面 : 63 mm | |||||||
| 螺牙: 1/4 NPT | |||||||
| 符合 DIN 標準 | |||||||
| 準確度 : ± 1.6％ | |||||||
| 可依需求客製錶面 | |||||||
| M0040 | 錶面 : 100 mm | ||||||
| 其餘規格與M0039相同 | |||||||
| P1710 | 不鏽鋼超高壓液壓計 | ||||||
| 經甘油填充具防震顯示功能 | |||||||
| 量測範圍: 0~1600 & 0~4000 bar | |||||||
| 錶面: 100 mm | |||||||
| 螺牙: M16 x 1.5 | |||||||
| 準確度達1.6等級，符合 EN 837-1規範 | |||||||

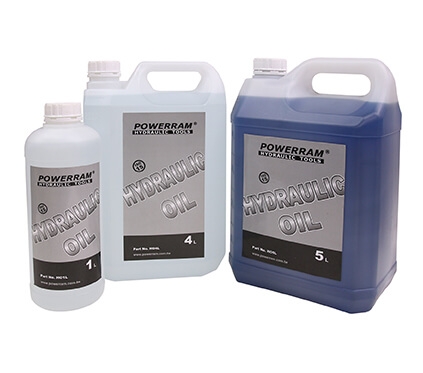

| 液壓油 | |||||||
| 型號 | 規格 | ||||||
| HO1L | 1公升 - ISO 15 等級 | ||||||
| HO2L | 2公升 - ISO 15 等級 | ||||||
| HO4L | 4公升 - ISO 15 等級 | ||||||
| HO5L | 5公升 - ISO 15 等級 | ||||||
